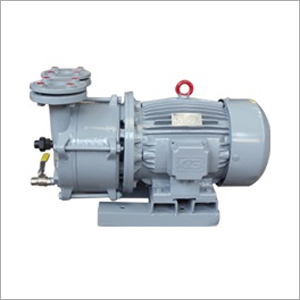

Monoblock Vacuum Pump

Monoblock Vacuum Pump
Monoblock Vacuum Pump
Product Code : FT 05
Brand Name : FINE TECH
Product Description

Leveraging on our vast industry experience, we manufacture and supply an extensive range of Monoblock Vacuum Pump. It is manufactured using quality approved component, sourced from the reliable vendor. This is connected to the motor shaft. When the sealing water temperature is around 30 °C (755 mm of Hg Barometric Pr & suction temperature of 30 °C), the pump develops maximum vacuum of 710 mm of hg. In addition, the product is operating at low water level and low pressure that ranges from 0.3 to 0.5 kg/cm2. Due to the compact size of Monoblock Vacuum Pump, it can be taken from one place to another very easily.

Features:

  • Easy to install and assemble

  • Compact and mobile

  • Smooth operation



FINE TECH” Monoblock Modern Design Water Ring Vacuum Pump which are very easy to install and assemble, compact, mobile and have a simple design with smooth operation. These pumps are connected to the motor shaft. The pump develop maximum vacuum of 710 mm of hg, when the sealing water temperature is around 30 °C (755 mm of Hg Barometric Pr & suction temperature of 30 °C). These pumps operate at low water levels and low pressure i.e. 0.3 to 0.5 kg/cm2. As these pumps are compact, they can be easily taken from one place to another mono block vacuum pump manufacturers

Fields Application

  • Laboratory Usage
  • Priming Purposes
  • Pilot Plants Salient Features

Salient Features

  • Simple Construction
  • Trouble Free Operation
  • Compact and Mobile

Range

  • Maximum Vacuum : 710 mm of hg
  • Capacity : 14 m3/hr to 330 m3/hr
  • Power : 1 hp to 15 hp

Material Of Construction

As Per Process Requirement

Technical Specification :

Pump Model

Max. Cap (m3/hr.)

Water Reqd. (LPM)

Rec. Motor HP/ Speed

FTM - 01

14

3

01 / 2850

FTM - 02

25

5

02 / 2850

FTM - 03

49

7

03 / 2850

FTM - 05

81

9

05 / 2850

FTM - 07

123

12

7.5 / 2850

FTM - 10

220

15

10 / 2850

FTM - 15

330

22

15 / 2850
