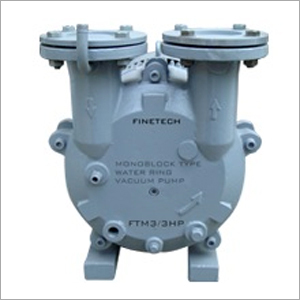

Monoblock Water Ring Vacuum Pumps

Monoblock Water Ring Vacuum Pumps
Monoblock Water Ring Vacuum Pumps
Product Code : FT 001
Brand Name : FINE TECH
Product Description

Our organization has gained immense recognition for manufacturing and supplying quality assured Monoblock Watering Vacuum Pumps. These are manufactured using quality tested material that is procured from reliable vendor of the market. Due to its simple design and easy installation and assembly, it can be taken from one place to another very easily. The pump is connected to the motor shaft. As the sealing water temperature is around 30 °C (755 mm of Hg Barometric Pr & suction temperature of 30 °C), the pump develops maximum vacuum of 710 mm of Hg. In addition, Monoblock Watering Vacuum Pumps are also operated at low water level and low pressure that varies from 0.3 to 0.5 kg/cm2. Our renowned clients can avail it from us at the most reasonable prices.

Features:

  • Robust construction

  • Easy to use

  • Longer service life







FINE TECH” Monoblock Modern Design Water Ring Vacuum Pump which are very easy to install and assemble, compact, mobile and have a simple design with smooth operation. These pumps are connected to the motor shaft. The pump develop maximum vacuum of 710 mm of hg, when the sealing water temperature is around 30 °C (755 mm of Hg Barometric Pr & suction temperature of 30 °C). These pumps operate at low water levels and low pressure i.e. 0.3 to 0.5 kg/cm2. As these pumps are compact, they can be easily taken from one place to another mono block vacuum pump manufacturers

Fields Application

  • Laboratory Usage
  • Priming Purposes
  • Pilot Plants Salient Features

Salient Features

  • Simple Construction
  • Trouble Free Operation
  • Compact and Mobile

Range

  • Maximum Vacuum : 710 mm of hg
  • Capacity : 14 m3/hr to 330 m3/hr
  • Power : 1 hp to 15 hp

Material Of Construction

As Per Process Requirement

Technical Specification :

Pump Model

Max. Cap (m3/hr.)

Water Reqd. (LPM)

Rec. Motor HP/ Speed

FTM - 01

14

3

01 / 2850

FTM - 02

25

5

02 / 2850

FTM - 03

49

7

03 / 2850

FTM - 05

81

9

05 / 2850

FTM - 07

123

12

7.5 / 2850

FTM - 10

220

15

10 / 2850

FTM - 15

330

22

15 / 2850
